DIY Router table
I made my own router table because, as usual, what is affordable and available in stores is lame and insufficient for my needs. I don’t really want to spend something like $500 just for a good router table so I made one. I also made my own adapter instead of buying one by re-purposing the fixed base I already had.

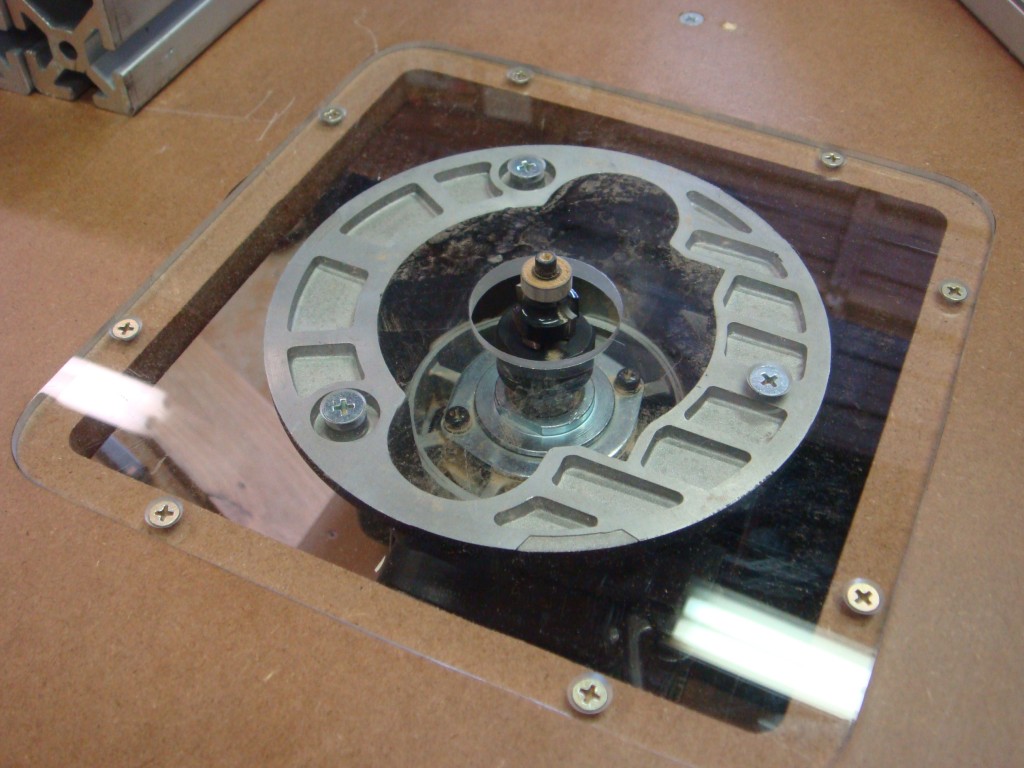

I made the base out of 2x4s and Simpson strong-ties. The corner ties are about $5 a piece or you can use two cheaper “Z-MAX” connectors. The top is 3/4 MDF. You can buy adapter plates for various router brands, or just make one like I did from 1/4″ acrylic that replaced the acrylic bottom piece of my fixed-base router. Use your router to cut a hole in the MDF and then use a rabbeting bit to create the countersunk part the acrylic base fits in. Remember to seal the MDF top with a clear sealer or something similar so the MDF doesn’t expand.
It works great, it’s way better than the $99 hardware store special, and I can use it for workspace in my shop instead of taking it up like a bench-top router table would. When I’m not using it I just lower the router and I have another table to work on.
8 Comments to DIY Router table
Leave a Reply
Other Stuff
Recent Posts
- 6CY7 dual triode valve amplifier
- Air quality sensor (TVOC and eqCO2)
- Automotive rear fill “surround sound” with Boss DD-3
- Spring tester / weight scale
- Ducati 749/999 Tail Light
- Instruments for the GSXR
- Light pipe tail light for the GSXR
- M17x 6990m / 6970m overheating
- PAR / Spectrum analyzer
- Acrylic polishing and scratch removal
Archives
- May 2019 (2)
- April 2017 (3)
- October 2015 (1)
- May 2015 (1)
- March 2014 (2)
- December 2013 (1)
- July 2013 (1)
- November 2012 (1)
- October 2012 (4)
- September 2012 (1)
- August 2012 (3)
- June 2012 (1)
- March 2012 (1)
- February 2012 (1)
- January 2012 (1)
- October 2011 (3)
- July 2011 (1)
- June 2011 (3)
- May 2011 (2)
- April 2011 (1)
- December 2010 (1)
- August 2010 (1)
- July 2010 (3)
- April 2010 (2)
- March 2010 (2)
- January 2010 (2)
- December 2009 (2)
- October 2009 (2)
- September 2009 (1)
- August 2009 (15)
Hi there… what are the overall dimensions of the top of your router table? It looks to be around 3′ deep by 4′ wide.
It’s 3′ wide, and 2′ deep.
Hi, I was wondering what thickness acrylic sheeting you used to fashion your template.
VERY nice design, BTW. On not only this but all of your other tinkerings too. Consider this eApplause.
what is the thickness of your plexiglas?
1/4″
Great table! I’m new to routing so my question is how do you cut out the hole in the mdf so neatly?
Mdf routed out with bearing guided bit guided by frame double stick taped to mdf table top, is only one way to do it.
1/4” plexi mat not be stiff enough. Nice idea though.
